Engineered forperformance.Built to last.
Heat exchangers, condensers, pressure vessels, reactors, columns and filter vessels for the process industries.
Over 45 years of manufacturing excellence, with quality at its best. Equipment is typically designed for process conditions, and mechanically designed per the ASME Code Section VIII, Div. 1 — internal and external pressure and temperature, vacuum service, seismic, wind, and external loads.
Condensers
Tube Bundles
Pressure Vessels
Columns
Engineering
Stock Units (Inquire)Process engineers
build with Rubicon
Pick a product line to see it on our shop floor.

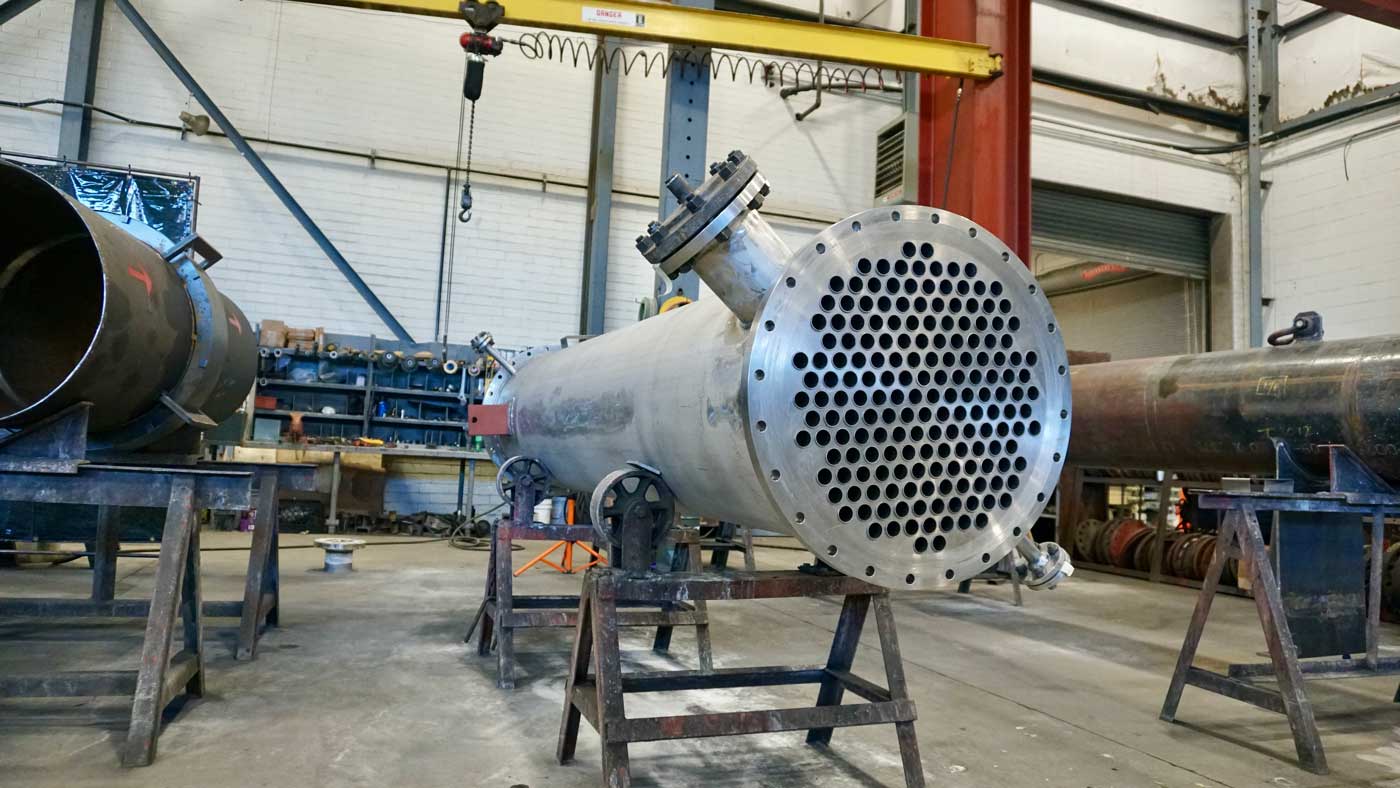

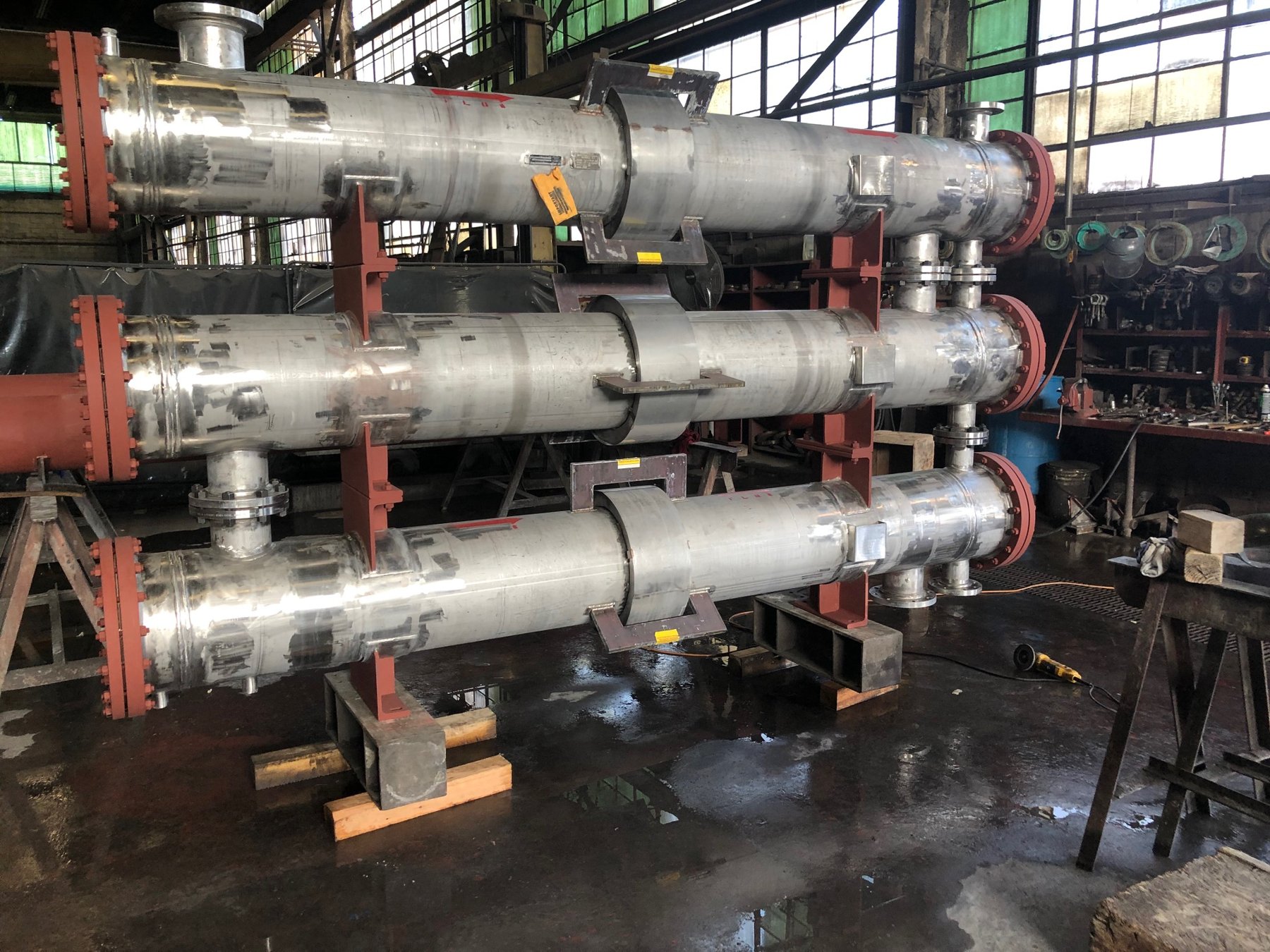

Heat Exchangers
Designed for your process conditions and mechanically designed per ASME Code Section VIII, Div. 1.

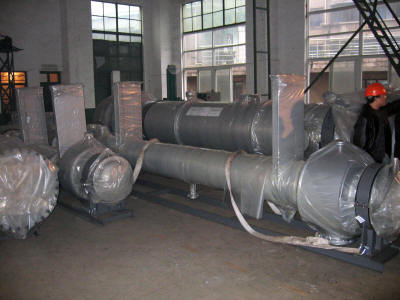

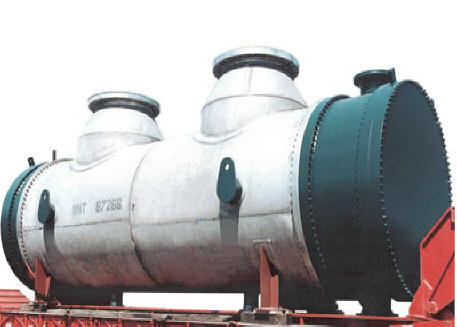

Heat exchangers &
condensers
Shell-and-tube heat exchangers and condensers for the process industries — Rubicon's core line for over four decades.

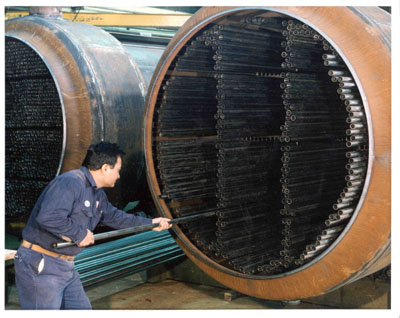

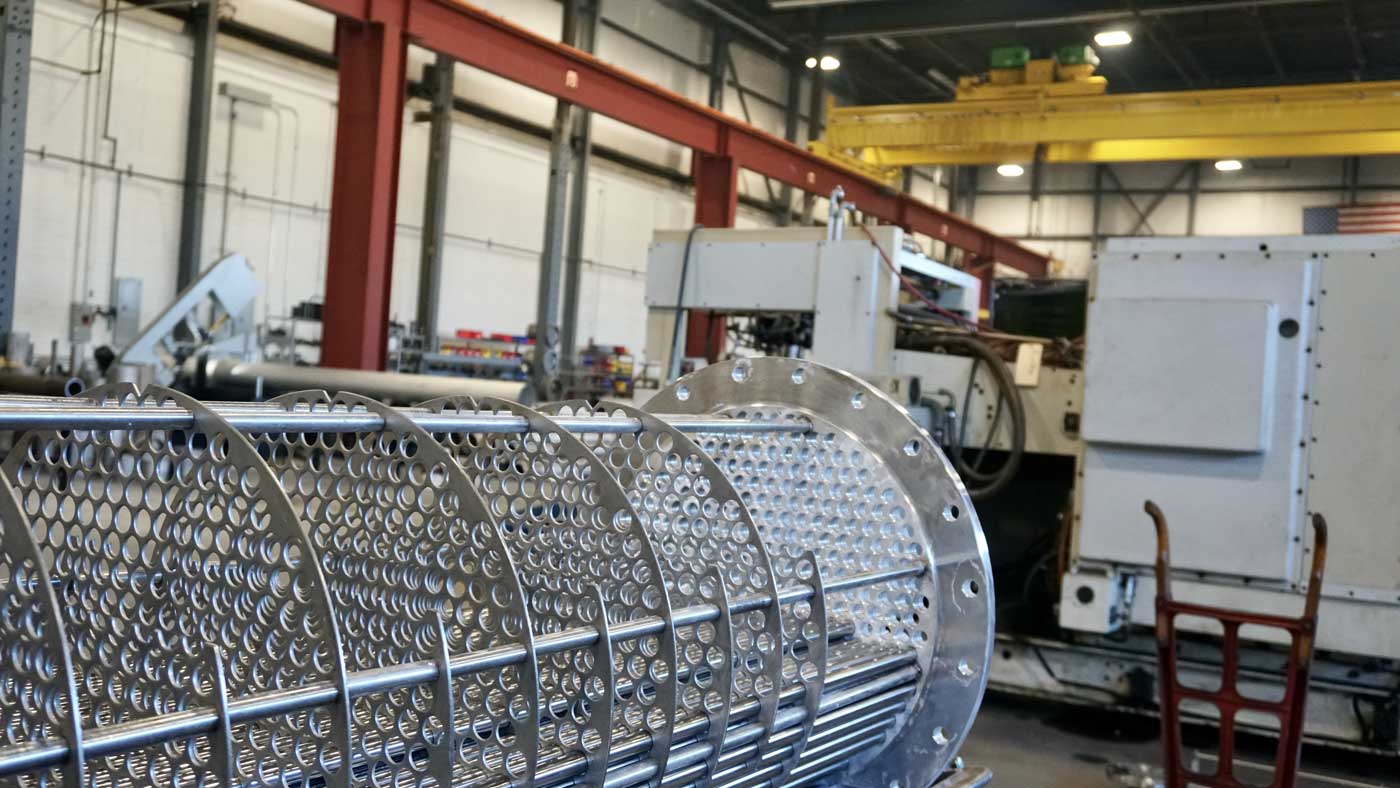

Tube bundles,
built to fit

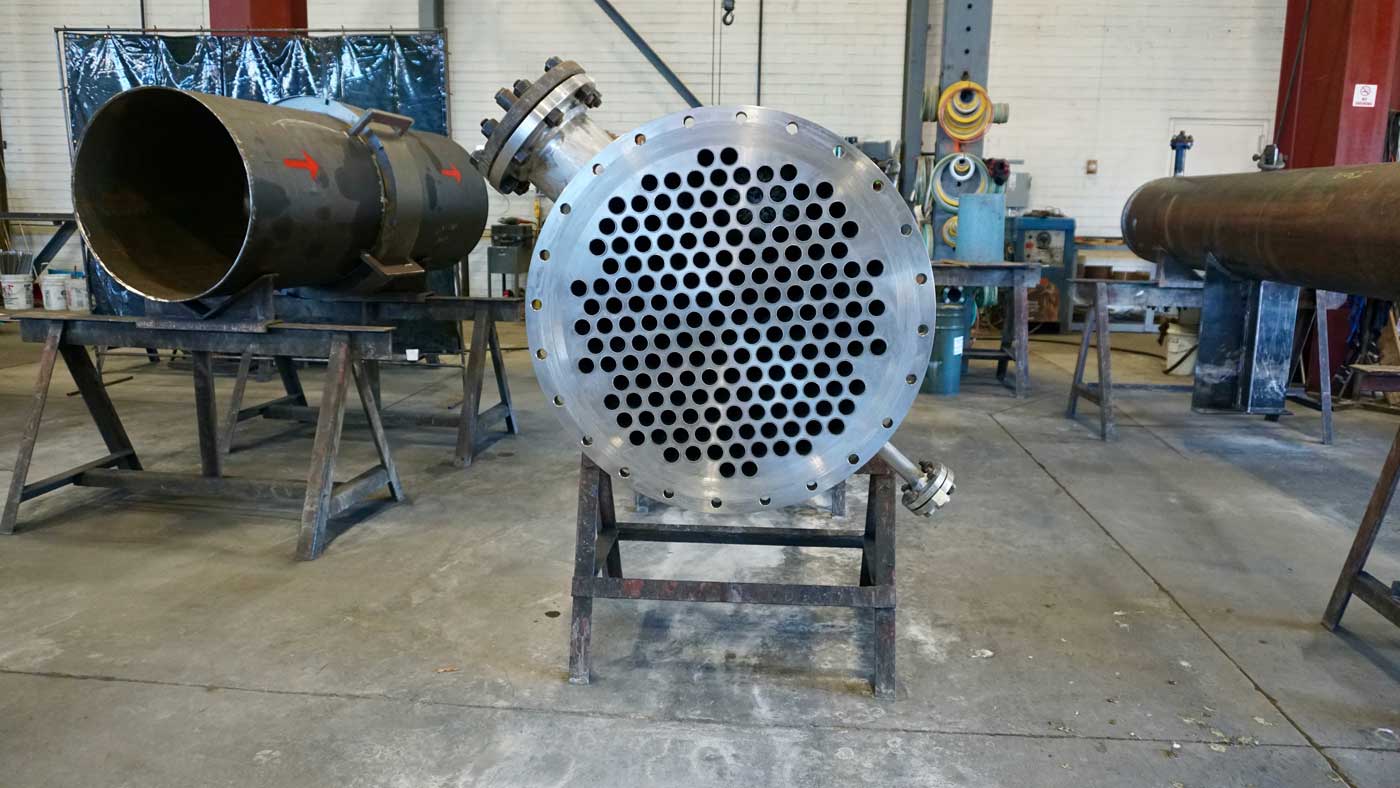

Replacement tube bundles and components fabricated in our own shop, from tubesheets to baffles.

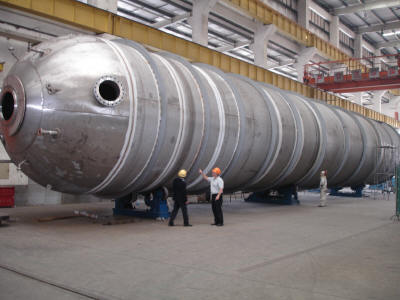

Filters, columns
& engineering
Filter vessels, columns and engineering support for complete process equipment packages.
Seven departments,
one roof.
51,000 sq ft of production on 3.5 acres, with a 2-hook 30/10 ton crane at 30' under hook.

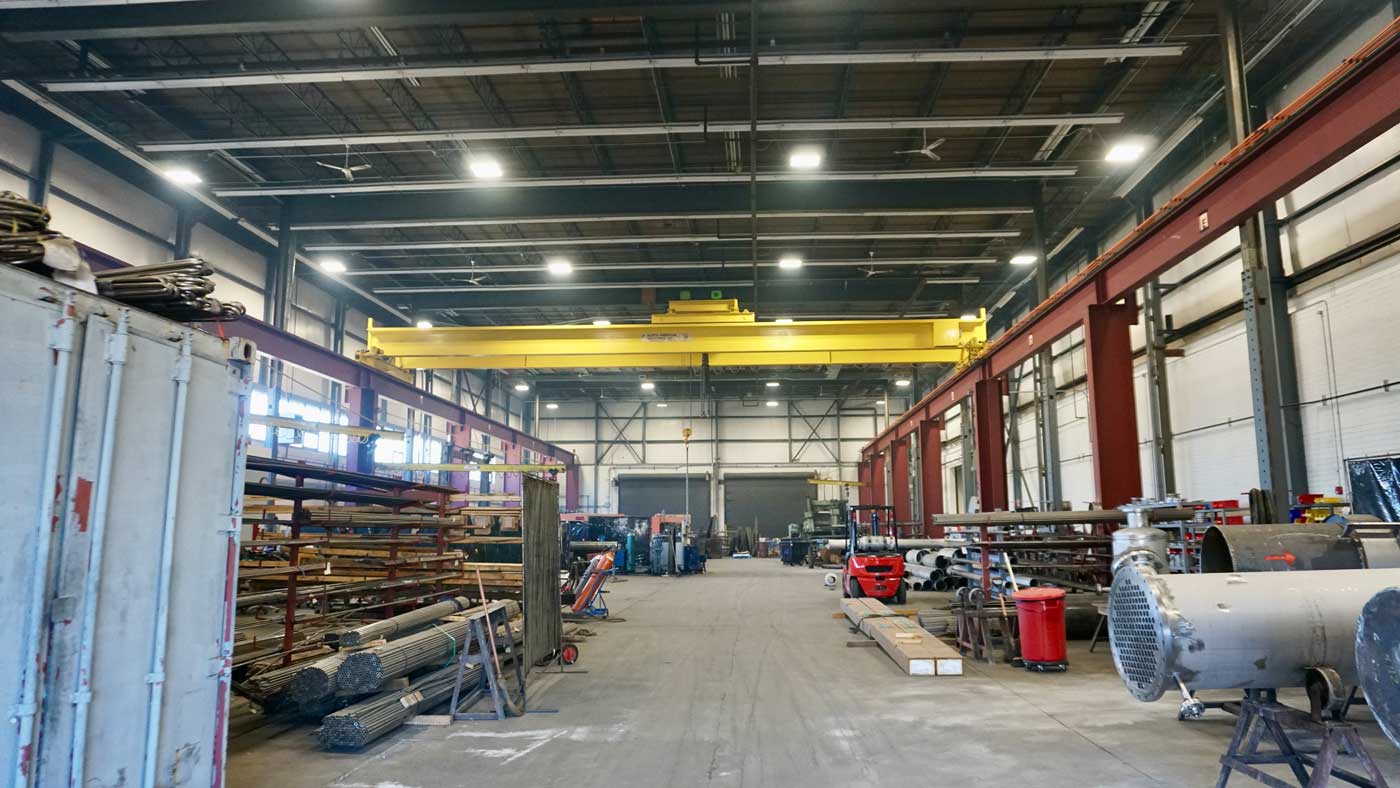

Manufacturing Workshop
Production working areas: 51,000 sq ft on 3.5 acres, with a 2-hook, 30/10 ton crane, 30' under hook.
| Area | Sq ft |
|---|---|
| Layout & Cutting | 10,000 |
| Machine Shop | 5,000 |
| Main Fabrication | 25,000 |
| Material Storage | 10,000 |
| Testing | 2,500 |
| Office | 5,000 |
Recent projects
Equipment fabricated and shipped from the Rubicon shop.

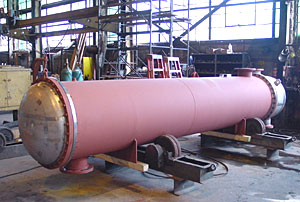

36" OD Heat Exchanger

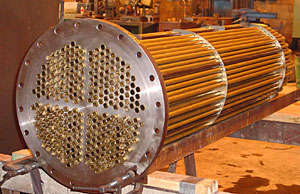

Brass Tube Bundle

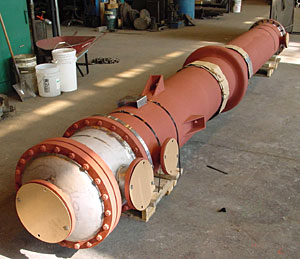

Heat Exchanger with Exp Joint

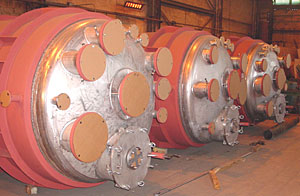

Top Head of Reactor Vessels

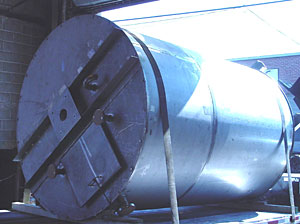

Atmospheric Storage Tank

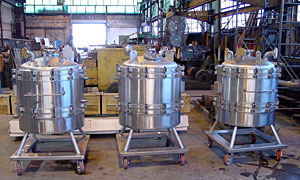

Three (3) Sanitary C-276 Nutsche Filters

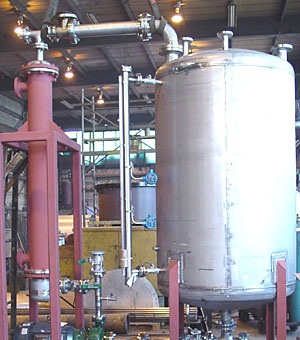

Packaged Vacuum System

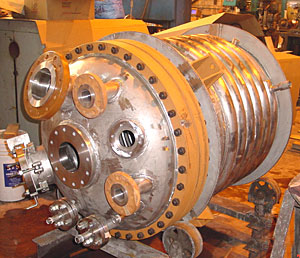

Half Pipe Reactor
Double Cone Sanitary Blender

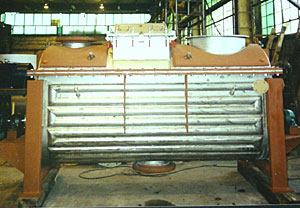

Half Pipe Jacketed Vacuum Ribbon Blender

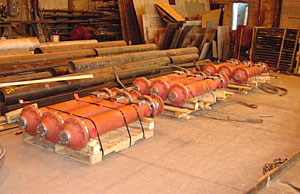

Skidded Condensers

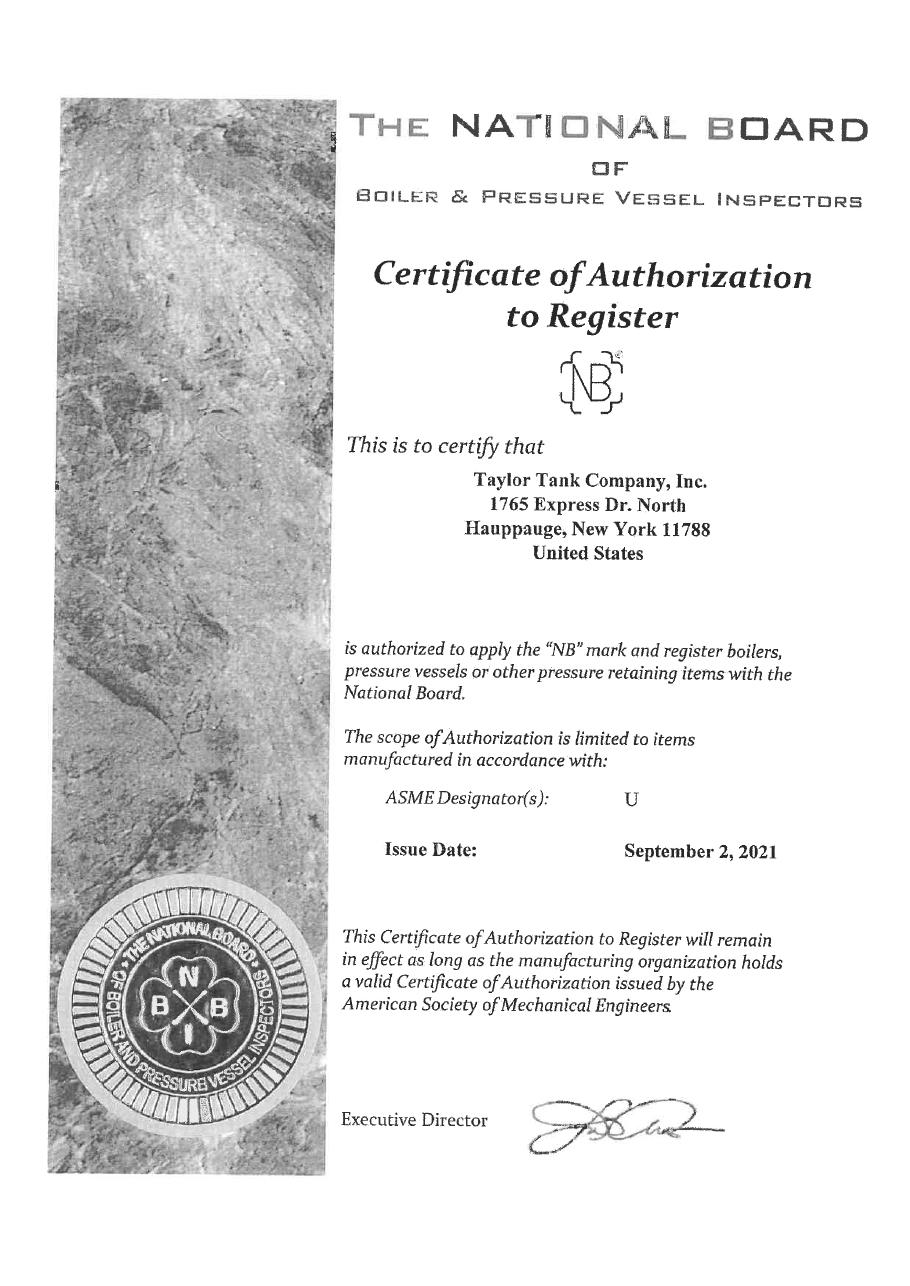

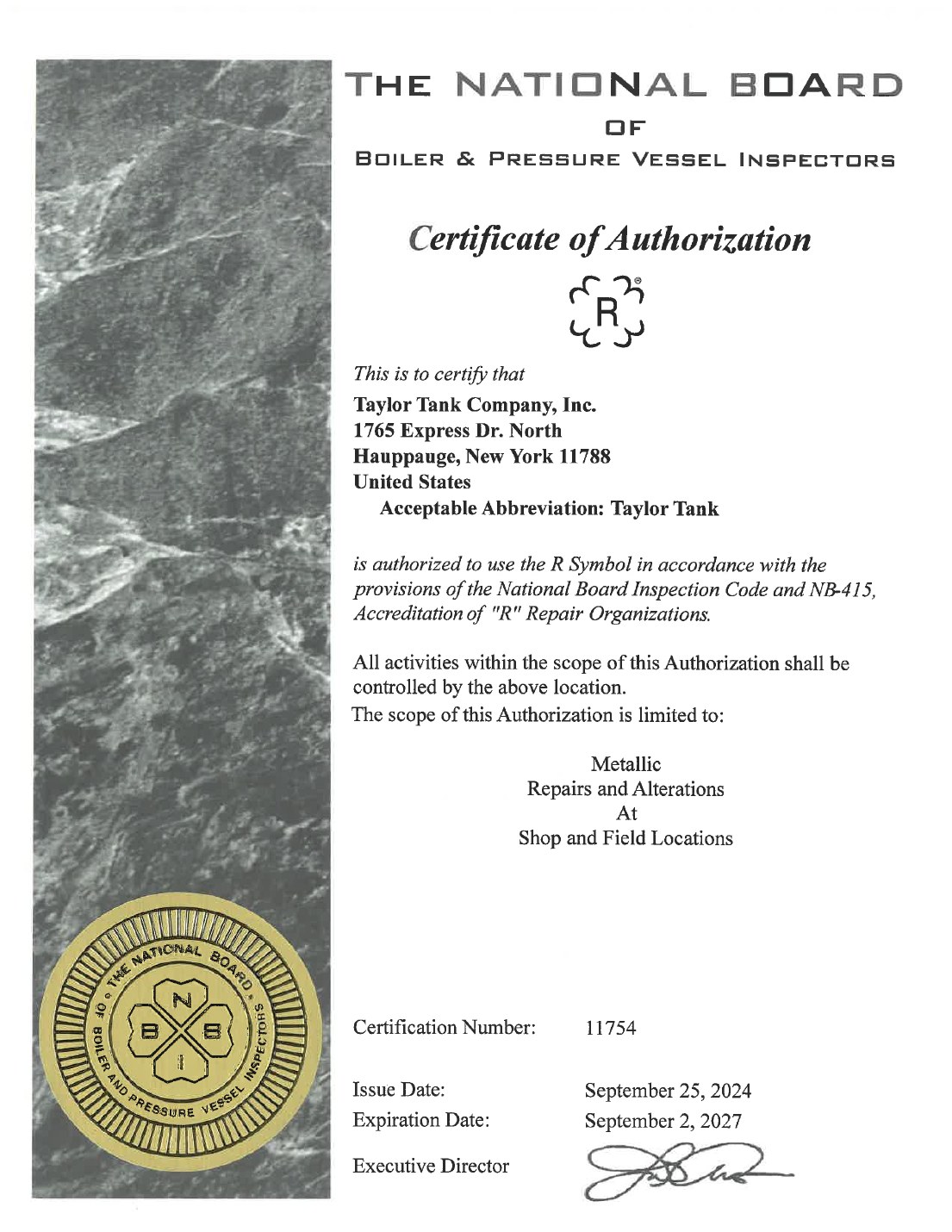

Stamped, registered
and inspected.

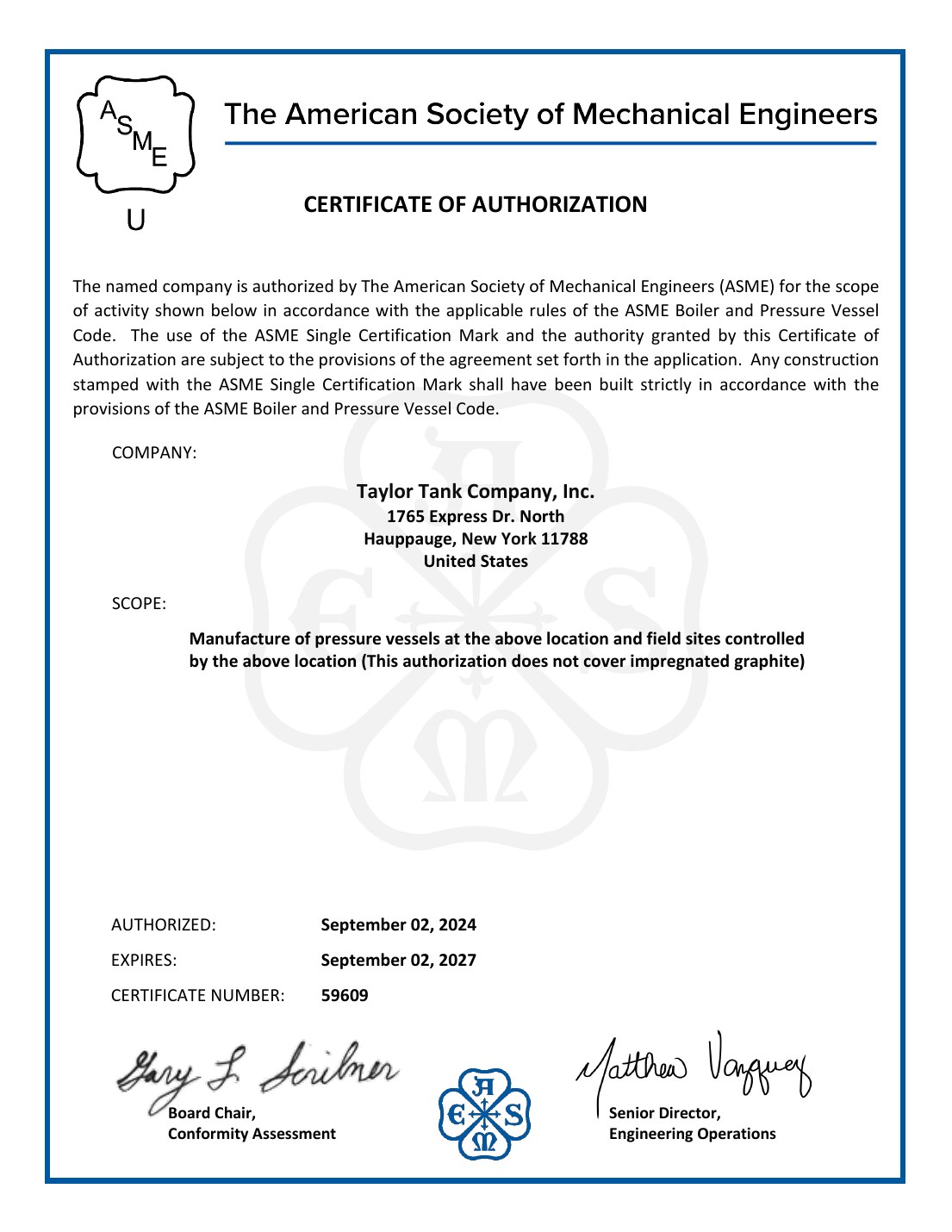

ASME Section VIII Div. 1 certifications conforming to the latest addenda. Authorized Inspection Agency: ONECIS.
Operating & maintenance instructions.
Request a copy of our O&M instructions for shell & tube heat exchangers.
Tell us about
your process.
Share your service conditions and requirements, and the Rubicon sales and engineering team will follow up.
